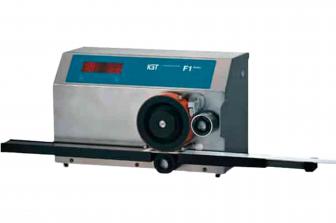

IGT F1 Basic PRINTABILITY TESTER (High - Low) for FLEXOGRAPHIC INKS

Cod: 160103Standard: ISO 2834, ISO 2846, ISO 12647 & ASTM 7680.

The F1 Basic is for flexo printing only, a universal flexo proofer for use with solvent based inks, UV inks and water inks on a range of substrates.

Equipped with a number of preset / pre-selected standard printing conditions that will cover the most common test applications. This makes the F1 Basic a very user-friendly, reliable and consistent flexo proofer. The F1 Basic ensures consistent results due to simple operation, low maintenance and high accuracy.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

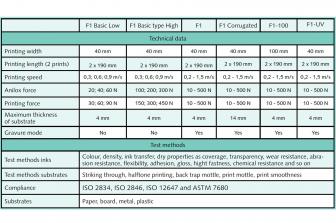

FEATURES:

F1 Basic Low:

Printing width: 40 mm.
Printing length (2 prints): 2 x 190 mm.
Printing speed: 0,3; 0,6; 0,9 m/s.
Anilox force: 20; 40; 60 N.
Printing force: 30; 60; 90 N.
Maximum thickness of substrate: 4 mm.
Gravure mode: No.
Test methods inks: Colour, density, ink transfer, dry properties as coverage, transparency, wear resistance, abrasion resistance, flexibility, adhesion, gloss, hight fastness, chemical resistance and so on.
Test methods substrates: Striking through, halftone printing, back trap mottle, print mottle, print smoothness.
Substrates: Paper, Board, Metal, Plastic.

F1 Basic type High:

Printing width: 40 mm.
Printing length (2 prints): 2 x 190 mm.
Printing speed: 0,3; 0,6; 0,9 m/s.
Anilox force: 100; 200; 300 N.
Printing force: 150; 300; 450 N.
Maximum thickness of substrate: 4 mm.
Gravure mode: No.
Test methods inks: Colour, density, ink transfer, dry properties as coverage, transparency, wear resistance, abrasion resistance, flexibility, adhesion, gloss, hight fastness, chemical resistance and so on.
Test methods substrates: Striking through, halftone printing, back trap mottle, print mottle, print smoothness.
Substrates: Paper, Board, Metal, Plastic.
