IGT F1-LED-UV PRINTABILITY TESTER

Cod: 160142Standard: ISO 2834, ISO 2846, ISO 12647 & ASTM 7680.

The F1-UV consists of the F1 tester and an integrated UV-dryer. The tester has been developed to print with UV-inks and to dry the ink directly after printing to have the optimum printing quality. The UV-radiation is adjustable and in combination with the printing speed, the drying properties of the ink can be tested.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

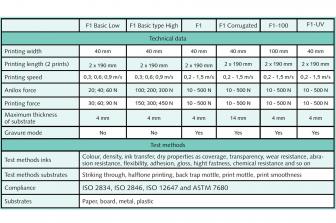

FEATURES:

Printing width: 40 mm.
Printing length (2 prints): 2 x 190 mm.
Printing speed: 0,2 - 1,5 m/s.
Anilox force: 10 - 500 N.
Printing force: 10 - 500 N.
Maximum thickness of substrate: 4 mm.
Gravure mode: Yes.
Test methods inks: Colour, density, ink transfer, dry properties as coverage, transparency, wear resistance, abrasion resistance, flexibility, adhesion, gloss, hight fastness, chemical resistance and so on.
Test methods substrates: Striking through, halftone printing, back trap mottle, print mottle, print smoothness.
Substrates: Paper, Board, Metal, Plastic.
