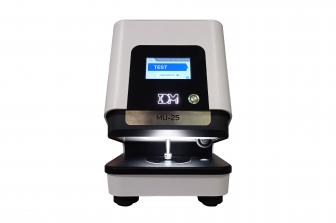

UNIVERSAL (MU) AND SPECIFIC (ME) ELECTRIC MICROMETER - IDM

Cod: 010157 / 010158 / 010159 / 010160 / 010161 / 010162 / 010163 / 010164Standard: ISO 534, ISO 3034, ISO 4593, UNE-EN ISO 12625-3, TAPPI T411, DIN 53105-1, DIN 53370, ASTM 6988, UNE-EN 20534, SCAN P7, P11, P47, FEFCO nº3, etc.

Automatic digital electric micrometer to determine the thickness in different materials such as Paper, Tissue, Cardboard, Plastic Film, Nonwoven, etc.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

Share:

FEATURES:

(Electric Micrometer):

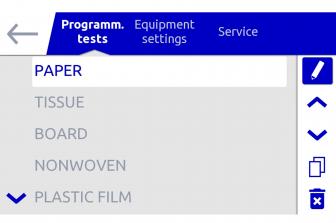

Pre-programmed tests according to standard and material to be tested.
Measurement resolution: depending on the model, 0.1 μm or 1 μm.
Measurement range: depending on the model, 20 or 25 mm.

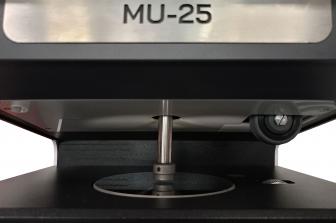

Electrical ascent / descent of the measuring pin.
Adjustable probe lowering speed between 1 and 10 mm/s.
Adjustable measuring time (probe on the sample).
Timer for measurement cycles (continuous measurement).
Dwell time adjustable from 0-999.9s.
USB connection to printer, with printing of result values and mean values.
RS-232 output for PC connection. Compatible with CAPTURE software.
Zero adjustment by the user.
Simple calibration (just press a button).
CE marked.

(AIM) (Code: 010164):
Autofeeder, integrated inside, for MU-25 and ME-X Micrometers, for paper strips or rolls.

For the automatic transport of paper strips or rolls.
Integrated within the micrometer.
Automatic sample detection.
Alert in case of sample non-detection.
Adjustable transport speed in test parameters.
Up to 60 measurements.
Configurable feed/measurement distance.
Synchronization of the advance operation with the measuring pins.

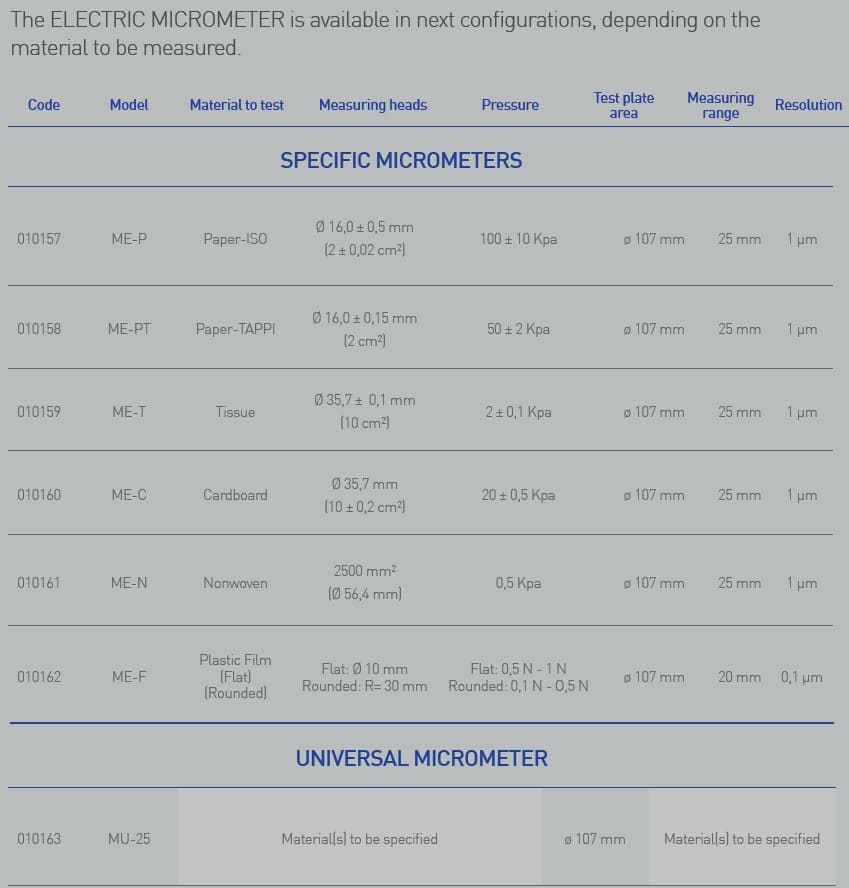

The ELECTRIC MICROMETER is available in next configurations, depending on the material to be measured:
