CONCENTRICITY and STRAIGHTNESS TESTER FOR CORES (CRM-10) - IDM

Cod: 010401Standard: UNE 57163-6, ISO 11093/5.

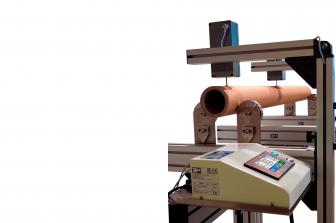

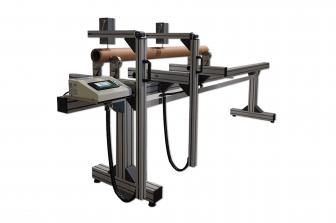

Computerized test bench for the determination of Concentricity and Straightness in cardboard cores or tubes.

Valid equipment for all types of tubes, especially for the rectilinearity and concentricity problems of the long ones.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

FEATURES:

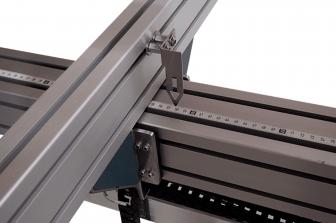

Robust structure in high-strength aluminum profi les.
Robust and easy to use equipment.

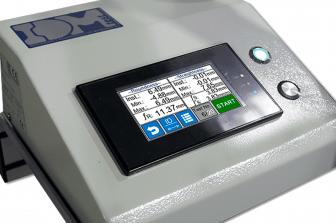

Control panel with a 4.3″ color touchscreen and auxiliary button.
Simple and intuitive menu operation, in different languages.
Selection of units mm, cm and inches.
Complete statistical functions on 20 values.
Equipped with 2 dial gauges: 1 fi xed and the other adjustable mobile.
Resolution of Dial Gauges: 0.001 mm.
Capacity of Dial Gauges: 50 mm.
Equipment adjustable to the length and diameter of the tube.

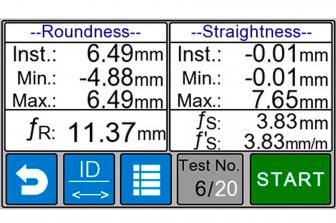

Calculation of Concentricity Based on Roundness and Straightness.
Quick and non-destructive measurement of the tube.
RS-232 and USB connections to PC.
CAPTURE Measurement and Control Software (optional).
CE marked.

FIELD OF APPLICATION:

Paper and cardboard cores and tubes:

• Minimum wall thickness 5 mm.
• External diameters between 60 and 450 mm.
• Maximum sample length 3.200 mm.

For cores with a length <3200 mm, the entire core is taken.
For cores with a length >3200 mm, a sample ranging from 1200 to 3200 mm is cut.
