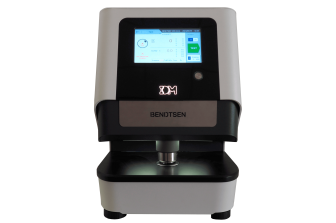

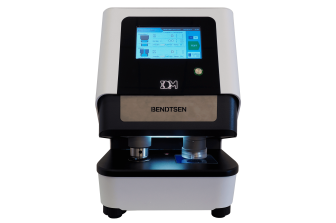

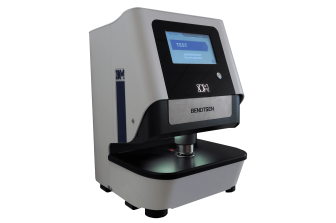

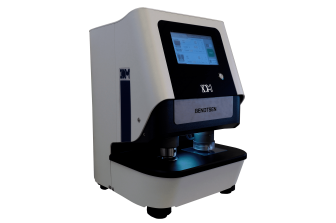

SMOOTHNESS AND BENDTSEN POROSITY EQUIPMENT (1-2 heads) PTA

Cod: 170218,170219,170221 Standard: ISO 5636/3 y 8791/2, DIN 53108, SCAN P21 y P60, BS 4420.

Automatic digital equipment for measuring the smoothness and porosity in the paper. Fully automatic equipment with one or two heads to determine only the smoothness, only the porosity or smoothness and porosity in the same equipment and in the same sample. The smoothness should be measured on both sides, since the fabric face and the top face do not have the same surface finish, but above all it should be measured on the face that is going to be printed. Equipment to determine the future properties of the paper at the time of printing. The equipment has automatic sample recognition and gives us complete statistics with paper reel profiles.

REQUEST ESTIMATE
    • Share:
    • Roughness and porosity tester in mm/min.
    • Gurley units porosity conversion.
    • Large colour touch screen.
    • RS-232 output for PC and USB printer output.
    • Full statistic functions: min./max., average, standard deviation, variance, porosity value in µm/Pa.s.
    • Coil profile graphics.
    • Measuring range from 0 to 5000 ml/min (other ranges under request).
    • Pressure selection: 0.74, 1.4, 2.20 kPa.
    • Automatic sample detection trough included sensor.
    • CE mark.
