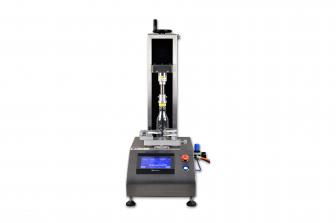

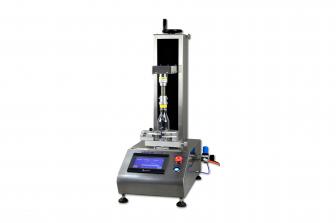

SEMI-AUTOMATIC TORQUE METER (ADATMV-ECO)

Cod: 440111 / 440112Standard: None.

Semi-automatic bottle cap torque controller that allows for efficient, accurate, and reproducible measurements.

Contact Form

You can get in touch with us filling the contact form below.

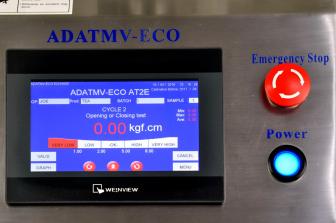

Use with ultra-simplified touchscreen interface.
Measurement during screwing and unscrewing.
Measuring range: from 00.00 to 99.99Kgf.cm.
2 cycle Screwing – unscrewing – application of torque or angular position.

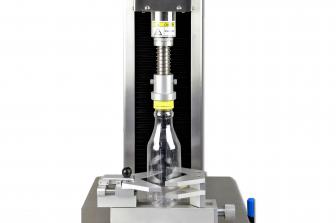

CYCLE: Blocking of the bottle or sample by low "quick tightening" clamp / descent of the screwing-unscrewing head with adjustable pressure (pressure force on the capsule) / gripping of the capsule in cone for capsule / reset to zero / screwing or unscrewing to the desired position At programmable speed / torque validation (sending values) / screwing head raising – unscrewing / opening of the lower cam clamp.
Choice of unit: Kgf.cm / Inch.lbs / N.cm / Nm.
Adjustable rotation speed.
Test chart.
Accuracy 0.5% PE.
30 memorized products
Option of up to 8 thresholds (limits) (depending on the cycle).
10 memorized operators.
Password protected configuration (administrator).
Operating pressure monitoring, automatic warning for insufficient operating pressure.
Memorization of 999 measurements.
Dynamic display: statistics / time / date.
Display: product name / operator / batch number / sample number.
1 RS232 & 1 mini-printer interface.
English language.
Delivered with COFRAC calibration certificate.
INOX set.

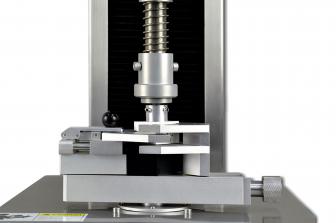

Choice of jaw type (body or under bottle neck).

OPTIONS:
