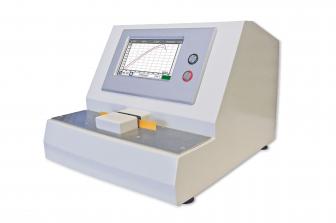

SHORT COMPRESSION TESTER (SCT-07) - IDM

Cod: 040106Standard: ISO 9895, TAPPI T826, DIN 54518, SCAN P46, BS 7325.

Equipment for determining the compressive strength per unit length of a sample of Liner or Flutting paper. (Replaces the RCT test, especially in low-grammage papers).

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

FEATURES:

High rigidity steel and aluminum frame.
Equipped with a 500 N load cell for measuring values up to 33,33 kN/m.

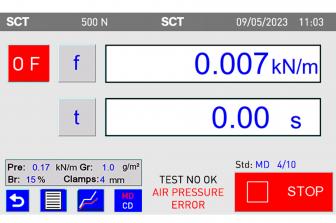

7” color touchscreen.

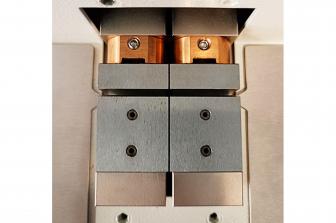

Linear movement of the grips.
Test speed: 3 mm/min.
Possibility of adjusting the Span between grips to 0.7 mm or 0.3 mm (for thin papers)
Sample width: 15 mm.
Test and automatic return speed to initial position: 3 ± 1 mm/min.
Short Span Value (SSV) in KN/m.
Maximum force in Newtons.
Compression index in Nm/g.

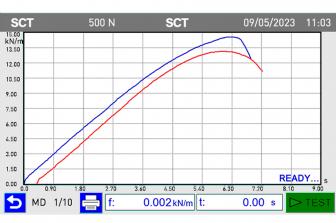

SCT curve, SCT value, and SCT index (basis weight).
Security. Electronic (programmed) and physical (travel limiters) overload protection.
RS-232 interface for connection to CAPTURE Test Control and Management software (optional program).
USB connection for maintenance works or USB printer connection.
Adjustable supports for equipment leveling.
CE Marked.
