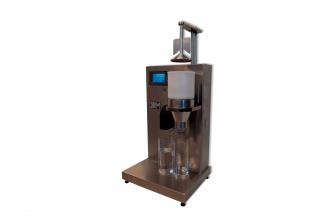

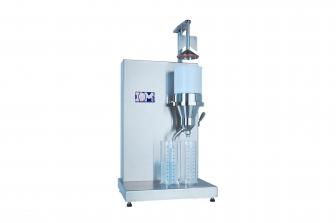

SCHOPPER-RIEGLER DEGREE REFINER METER (SH / SHD-IDM ) - IDM

Cod: 070222 / 070235Standard: ISO 5267/1, SCAN C19 M3, BS 6035/1, Zellcheming Merkblatt V/7/61.

Equipment for the determination of the degree of refining and the drainage rate of paper fibers.

Contact Form

You can get in touch with us filling the contact form below.

Robust equipment, made of Stainless Steel and POM.
Ease of operation and cleaning.
Pneumatic activation of the release and closing system.
Closure cone speed (standard 100 mm/s).
2 versions:
- Pneumatic: Code: 070222 (SH-IDM).
- Pneumatic-Digital: Touch Screen + Level Sensor Code: 070235 (SHD-IDM).

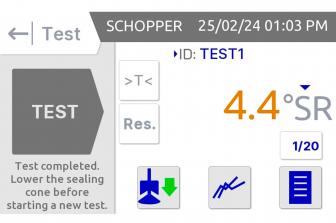

Digital Version: 4.3” Color Touchscreen for Configuration and Operation.
Digital Version: Refining Grade Results in ºSR, with Drainage Time Calculation and Drainage Curve.

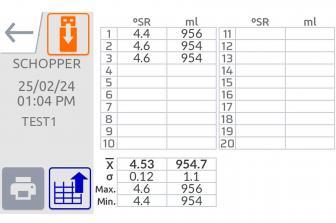

Digital Version: Table of numerical results with statistics: mean value, standard deviation, and maximum and minimum values.
Digital Version: RS-232 port for data transfer to PC (Optional CAPTURE Software).
Digital Version: USB output for data collection on a Pendrive.

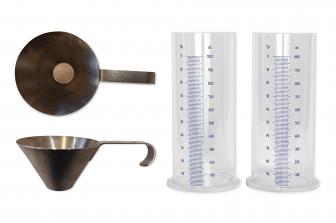

Including two graduated beakers for testing.
Consistency Pots for Schopper (Consistency Value from 1 to 12%, in 0.5% increments), to obtain 2 grams of paste/pulp for the test (Optional).
Spare parts for mesh and calibrated nozzle (Optional).
CE marked.
