SAMPLE CRUSH TESTER (SC-500) - IDM

Cod: 040101Standard: ISO 3035, ISO 3037, ISO 11093-9, TAPPI T808, T809, T811, T818, T821, T825, T839, FEFCO Nº 6,8 & 11, AFNOR 23035, etc.

Sample Crush Tester to carry out different type of compression tests on paper and corrugated board.

Contact Form

You can get in touch with us filling the contact form below.

Possibility to carry out different type of tests on paper, corrugated board, cores, etc.
By means of exchanging the sample holder accessory, it is possible to make RCT, CMT, ECT, CCT, FCT, PAT, SQT tests. Sample holders not included.
High rigidity steel and aluminum frame.
Driven by DC servo motor and high accuracy ball screw.
Emergency push button.
Protective bellows for the drive mechanism.
Adjustable supports for leveling the equipment.

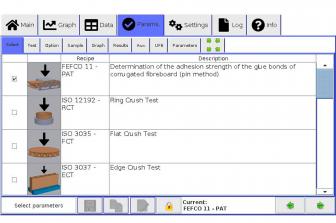

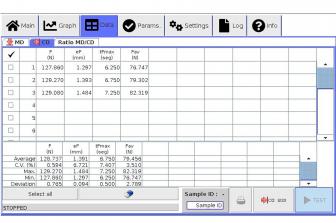

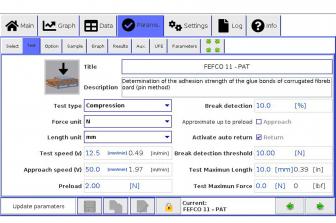

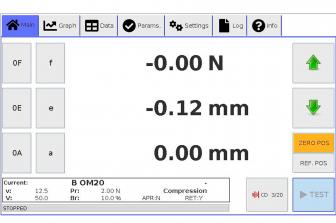

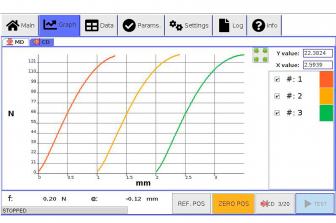

7” color touchscreen with a simple and intuitive interface.
Measuring range from 0 to 5.000 N Available force units (Newtons, Kilograms, Pounds).
Maximum travel of the lower plate 140 mm. Consult for other travels. Extension units available (millimeters, inches).
Plate positioning through optical position encoder.
Compression Plates dimensions: 150x150 mm.
Testing and approaching speeds between 1 and 400 mm/min.
Security. Electronic (programming) and physical (limit switches) overload protection.
USB Type “B” interface for connection to Test Control and Management programs.
USB connection for maintenance works and for connection with USB printer.
Force readings with a resolution of 0.004 % of the FS, and extension readings with a resolution of 0.01 mm.
Accuracy. <1% of the applied force in a range between 2 % and 100 % of the FS.
Optional Capture Software.
CE marked.
