UNIVERSAL BENCHTOP CRUSH TESTER (BCS-50) - IDM

Cod: 050196Standard: DIN EN 22.872, ISO 12.048, ISO 11.093-9, TAPPI T804, UNE 57.163/5, FEFCO Nº50, AFNOR H13-001, etc.

Equipment to carry out compression tests on all types of packaging: corrugated cardboard boxes, paper tubes (cores), drums, bottles, etc.

With fixed plates and oscillating fixed plates to meet all the compression standards either ISO, FEFCO or TAPPI.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE
    • Share:
    • Compression plates of 500x500 mm. Maximum opening between plates of 500 mm.
    • Capacity: 10 kN (1 Ton – 2,205 Pounds).
    • Autonomous operation from the equipment without the need to connect to a PC.
    • Data capture using CAPTURE Software (Optional) and Stacking and Cycle Tests using the Module with programmable stages (Optional).
    • High-rigidity steel frame.

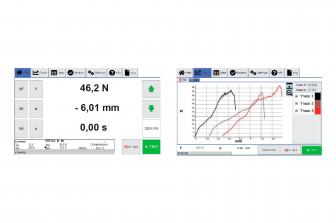

    • 7” color touchscreen.
    • Pre-recorded tests on an easy-to-use and selectable screen. Possibility to create your own test routines.
    • Possibility of a fixed upper plate or a fixed and oscillating upper plate (optional).
    • 4 spindles with recirculating ball with low friction coefficient.
    • Force acquisition system equipped with 3 load cells located beneath the lower plate.
    • Direct current servo motor and reducer to achieve stable speeds at full-scale.
    • High-precision optical deformation encoder.
    • Emergency stop button.
    • Readings with a resolution of 0.002 % of the full-scale force and 0.2 mm in extension.
    • Accuracy: <1% of the applied force for a range between 2 and 100 % of the (F.S.).
    • Selection of test and approach speeds between 1 and 500 mm/min.
    • Safety: Protection against electronic overloads (programming) and physical overloads (travel limiters).
    • RS-232 port for connection to CAPTURE Test Control and Management programs (optional software).
    • USB port for printer connection and result download.
    • Ethernet connection for maintenance tasks and interface updates.
    • CE marked.
