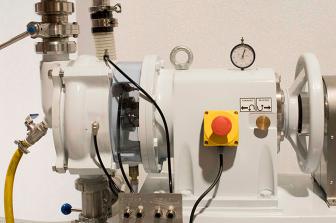

LABORATORY DISC REFINER (8 Inch - 200 mm) (TP 200) - IDM

Cod: 070111Standard: None

For laboratory use in the refining process of chemical, semichemical, mechanical and recycled pulps.

Contact Form

You can get in touch with us filling the contact form below.

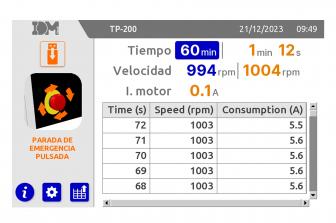

7-inch color touch screen.
To refine pulp under conditions similar to those produced in the paper machine.
Consistency ranging from 2 to 5%.
Refining discs of Ø 200 mm - 8 inches.
Speed: 1.800 r.p.m.

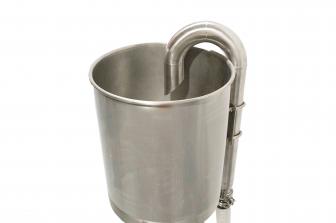

45-Liter Stainless Steel Tank (consult other volumes).
Stainless steel chamber and disc supports.

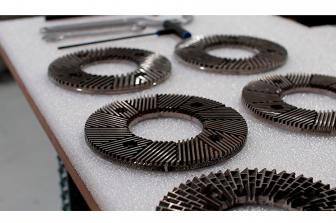

3 sets of discs available (to be specified in the order).

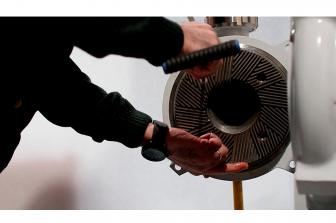

Simple and quick disc change system.
Electrical cabinet, ammeter (Stop & Start) and digital timer.
Adjustment of the position of the discs by means of a 0.01 mm digital micrometer.
Machine frame and body in nodular steel.
Pulp recirculation system.
System for collecting pulp samples during refining.
Easy to clean. Water is injected directly into the discs for cleaning.

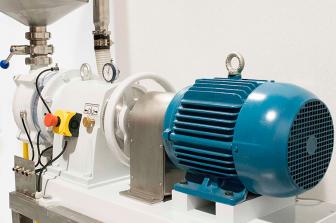

10HP / 7.5KW motor.
CE Marked.
