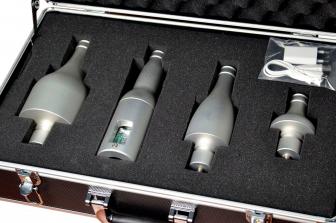

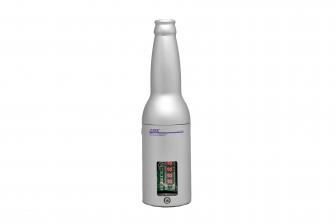

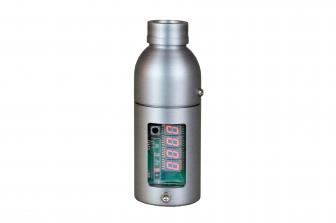

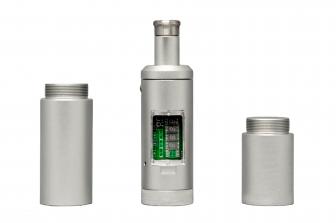

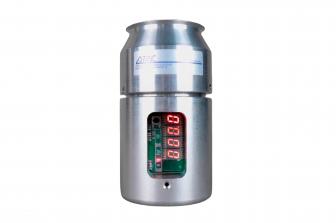

PATTERN BOTTLE - VERTICAL FORCE CONTROL (TOP-LOAD) WITH SUITCASE (BT ETA FORCE) - AT2E

Cod: 441202Standard: None.

Designed to control vertical pressure in capping heads.

The AT2E BT ETA FORCE is built with a special mechanism that cancels out all vertical forces; it also has high-speed electronics. They can be designed according to requirements for different bottle or can formats. The program facilitates data analysis, storage, and management.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

Share:

FEATURES:

Technical Specifications:

Digital display.
Compression measurements.
Measuring range: 0.0 to 650.0 Kgf.
2 measurement modes (continuous and peak).
Units: Kgf / lbf / N.
Accuracy: ± 0.5% of full scale.
Charging via USB (PC).
Delivered with COFRAC calibration certificate.
Carrying case.

Mechanical Specifications:

Design on request.
Internal battery for 3 hours.
Minimum diameter 35 mm / height 60 mm.
Weight 1-2 kg.

Uses:

Install directly in-line, under the capping head.
Control capping heads under real-world conditions.
Avoid disassembly.
Interchangeable formats.
