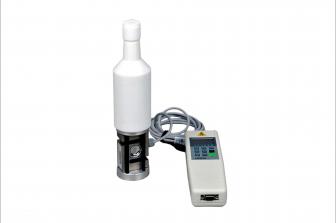

PATTERN BOTTLE - VERTICAL FORCE CONTROL (TOP-LOAD) CAPPING HEADS (BT ETA FORCE SHF) - AT2E

Cod: 441201Standard: None.

Designed to control vertical pressure in capping heads.

Dynamometers built with special mechanisms that allow all vertical forces to be canceled; they also have high-speed electronics.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

FEATURES:

Technical Specifications:

Remote digital display.
Compression measurements.
Measuring range: 0.0 to 500.0 kgf.
2 measurement modes (continuous and peak).
Units: kgf / lbf / N
Accuracy: ± 0.5% of full scale.
USB charging (PC).
Reversible display.
Includes RS curve data software.
Supplied with COFRAC calibration certificate.
Carrying case.

Mechanical Specifications:

Custom design.
Internal battery for 20 hours.
Minimum diameter: 50 mm.
Height: 104 mm.
Weight: 3 kg.

Uses:

Install directly in-line, under the capping head.
Monitor capping heads under real-world conditions.
Avoid disassembly.
Interchangeable formats.
