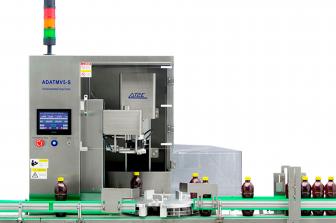

ONLINE AUTOMATIC TORQUE METER (ADATMV5-S) - AT2E

Cod: 440701Standard: None.

The AT2E ADATMV5-S automated in-line torque meter, is a torque controller designed for easy installation against a packaging line after ejector. Monitors and provides measurement data through continuous inspection.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

FEATURES:
OTHERS:

Stand-alone torque control module.

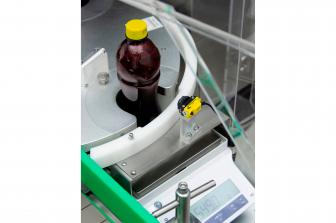

Integrable regulatory weighing (option).
Integrable bubble point leak tester (option).
Use with ultra-simplified touchscreen interface.
Measurement during screwing and unscrewing.
Measuring range: from 00.00 to 99.99Kgf.cm.
6 cycles: Closing torque – opening / Angular positioning + torque / Break unlocking / Overscrewing break unlocking / Non-destructive test / weighing / Bubble point leak test.
Choice of unit: Kgf.cm / Inch.lbs / daN.cm / N.cm / Nm.
Adjustable rotation speeds (1,2).
Test chart.
Accuracy 0.5% PE.
30 memorized products.
10 groups of thresholds: low; high ; with bar graph.
10 memorized operators.
Memorization of 1000 measurements.
Dynamic display: statistics / time / date.
Display: product name / operator / batch number / line number.
Personalized cycles.
1 RS232 output and 1 printer output (software & printer).
Configuration by administrator code, the operator has access to the choices only.
Language: English, French, Spanish other on request.
Delivered with COFRAC ASTM UKAS, DKD NIST ENAC calibration certificate.
AC 220V (AC 110V optional).
INOX and transparent plexiglass assembly.
Choice of bit type: Drink / Cosmetic / Pharmacy.

OPTIONS:

Weighing control module.
Application angle control module (need to confirm the index mark of cap and bottle).
Internal pressure control module.
Secure sealing performance automatic control module.
Mini printer.
QUALITORQ FDA software - CFR 21-11.
Personalized display and cycles.
Calibration pack.
Dynamometric system.
Auto start-stop detection system.
