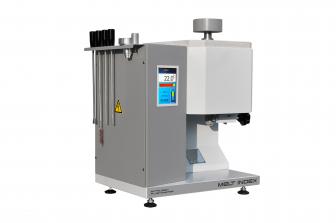

MELT FLOW INDEX (MELT-INDEX)

Cod: 380108Standard: ASTM D1238, ASTM D2116, ASTM D3159, ASTM D3364, ISO 1133, UNI 5640.

This equipment is designed to determine the Melt Flow Rate of thermoplastic materials basing on Gravimetric Method.

The method requires the simplest model among line of plastometers. The heated material is extruded, cut manually at regular intervals, and weighed on an analytical balance (not included).

The MFR in 10 minutes will be then calculated, as per standards.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

FEATURES:

Metal frame and case painted with epoxy resins.
5” TOUCH TFT digital screen colour display, for temperature setting and data input.
Heating system: two individually controlled resistances (resolution of 0.1°C).
Operating temperature range: 50 to 300°C.
Thermal stability: within ± 0.2°C in the testing area.
Test chamber: Ø 9.55 mm made of steel (52/55 HRC).
Piston: Ø 9.474 mm, height of the pressing part 6.35 mm, made of steel (52/55 HRC).
Overall weight 325 g, complete with weight support head and flag’s arm.
Die: internal Ø 2.095 mm, height 8 mm, made of steel (60/65 HRC).
Set of 4 adjustable feet for instrument levelling, assembled.
Control mirror, assembled.
Interchangeable add-on weights set to match conditions as per Standards: 1.000, 1.050, 1.200, 2.160, 5.000, 10.000, 12.500, 20.000, 21.600 kg (Not included).
