BOX COMPRESSION TESTERS (BCT) - IDM

Cod: 0501xxStandard: DIN EN 22872, ISO 12048, TAPPI T804, UNE 57163/5, FEFCO Nº50, AFNOR H13-001.

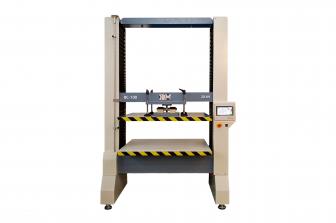

Machine for performing compression tests on boxes and packaging in general, with fixed and oscillating plates to comply with all compression standards, including ISO, FECCO, and Tappi.

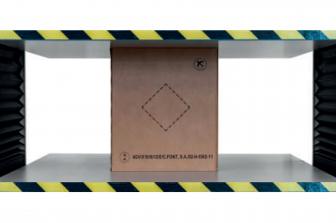

Special equipment designed to measure the packaging with the product inside. Optional programme for PC to make compression, stacking and cyclic tests.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

FEATURES:
OTHERS:

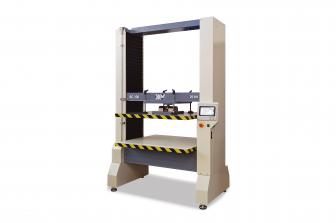

High rigidity steel frame.

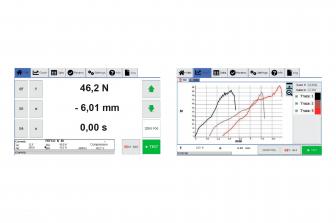

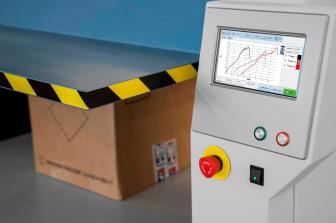

7” color touchscreen with preprogrammed tests according to standards (ISO, FEFCO, TAPPI, etc.).
Data capture using CAPTURE Software (Optional) and Stacking and Cycle Tests using the Module with programmable stages (Optional).
Moving plate guided by 4 cylindrical guide columns and low friction linear bearings.
2 spindles with ball recirculation and a low friction coefficient.
Force capture system equipped with 3 load cells placed under the lower plate.
Driven by D.C. Servo-motor and reductor to achieve stable speeds in the FS.
Emergency stop button.

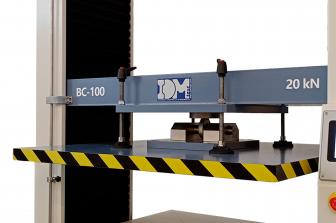

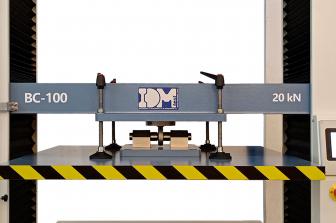

Possibility of fixed upper plate or fixed and oscillating upper plate.
Optical deformation encoder.
Force readings with a resolution of 0.004 % of the FS, and extension readings with a resolution of 0.01 mm.
Accuracy. <1% of the applied force in a range between 2% and 100% of the FS.
Available force units (Newtons, Kilograms, Pounds).
Available extension units (millimeters, inches).
Selection of test and approach speeds between 1 and 400 mm/min.
Safety. Electronic protection against overloads (programming) and physical protection (travel limiters).
Ease of exporting data in PDF or EXCEL®.
Ethernet connection for maintenance work and updates.
RS-232 interface for connection to Test Control and Management software.
USB port.
Video-capture system of the test. Recording of the sample compression with reproduction in real time through the CAPTURE software (Optional).
CE marked.

Strength ranges and plate dimensions:
050113 · BC80/10 · 800x800x800mm/10kN
050114 · BC80/20 · 800x800x800mm/20kN
050115 · BC80/30 · 800x800x800mm/30kN
050116 · BC80/10 · 800x1000x800mm/10kN
050117 · BC80/20 · 800x1000x800mm/20kN
050118 · BC80/30 · 800x1000x800mm/30kN
050119 · BC100/10 · 1000x1000x1000mm/10kN
050120 · BC100/20 · 1000x1000x1000mm/20kN
050121 · BC100/30 · 1000x1000x1000mm/30kN
0501A5 · BC125/10 · 1250x1000x1250mm/10kN
0501A6 · BC125/20 · 1250x1000x1250mm/20kN
0501A7 · BC125/30 · 1250x1000x1250mm/30kN
Consult for different plate dimensions. On request IDM Commercial Department.
