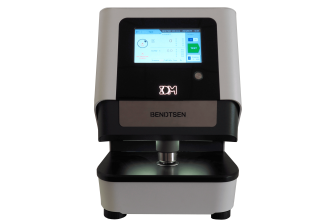

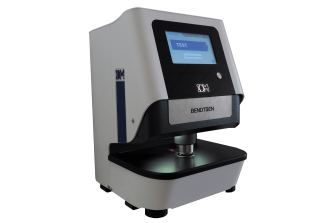

POROSITY METER - GURLEY / BENDTSEN METHOD (1 HEAD) (PBD-01) - IDM

Cod: 170219Standard: TAPPI T460, ISO 5636-5, ISO 8791-2, DIN 53108, SCAN P19, SCAN P60, TAPPI UM535, PAPTAC D14, BS ISO 5636-5.

Equipment used to determine Gurley and Bendtsen porosity. The equipment is based on the measurement of porosity with the Bendtsen system. The result correlates it to Gurley seconds. System without oil and easy to use. Pneumatic clamping system, automatic sample detection and gives us complete statistics with paper reel profiles. Color touch screen and equipment controlled by PLC.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

FEATURES:

Gurley Porosity in seconds.
Bendtsen Porosity in ml/min.
New design with improved ergonomics and new materials.
Oil-free equipment.

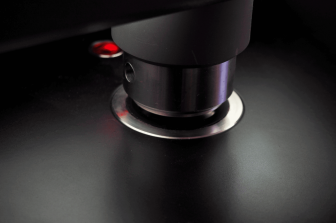

Illuminated test area.
Automatic sample detection using an integrated sensor.
Large 7” color touchscreen.
RS-232 interface for PC connection.
USB connection for data export.
Complete statistical functions: min/max, mean, standard deviation, variance, porosity value in (μm/Pa.s).
Conversion of values to SHEFFIELD units.
Coil profile graphs.
Measurement ranges: 0-1000 seconds in Gurley Porosity.
Measurement ranges: 0-5000 ml/min in Bendtsen Porosity.
Measurement pressures: 0.74, 1.47, and 2.20 kPa.
Connection to USB Printers.
CE marked.

Test: Bendtsen/Gurley Porosity / Measuring head: 1 x Porosity measuring head / Model: PBD-01G / Code: 170219.
