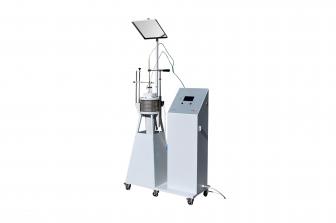

FURNACE FOR NON-COMBUSTIBILITY TEST (FA01) - noselab

Cod: 430511Standard: ISO 1182 (2020).

The APPLIANCE has the purpose of establishing whether or not a material contributes to the fire. Its results determine whether the product in question can be safely used for certain uses in construction. The test is applicable to construction materials or products whether or not they have received a finish layer, but it is not applicable to the actual substance used for this finish.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

FEATURES:

Tubular furnace mounted on a metal frame on wheels for easy positioning;
Oven in refractory tube heated by electric resistances, thermally insulated with 75 mm Ø alumina;
Diffuser cone insulated with fiberglass 0.04 W/ mK);
Self-centering specimen positioning system with manual movement and shock absorber;
Type K thermocouples: Tf (T1-T2)-Tc-Ts
Thermal sensor for calibration with copper cylinder (10 dia. X 15 mm);
Contact thermocouple and support
Sample basket in nickel- chromo;
Mirror 300 mm on the side at 30 ° for viewing the test
Control unit System with digital display for temperature control and stabilization at 750 ° C regulation of the oven voltage during the cycle (1.5kVA), alarm signal for exceeding the temperature and USB output for connection to PC (optional)
Data acquisition software with Save, Recall, Data Management, Graph, Stability, Numerical Values, Report functions
The test report describes the general information, the initial, maximum and final temperature, the time required to increase the temperature, the total combustion time.
