FIRE RESISTANCE OF ELECTRIC CABLES (AB01) - noselab

Cod: 430601Standard: IEC 60331-11, BS 6387(C-W-Z), EN 50200, IEC 60331-21.

This test is carried out to verify circuit integrity even during a fire.

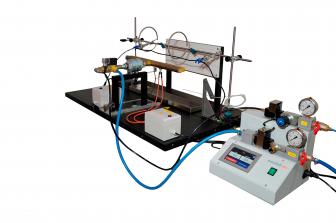

A sample of cable is held horizontally over a ribbon flame at about 750 °C. A test voltage is applied continuously for a period of 3 hours to the cable and no break or short circuit should occur in the cable. (not supplied). Complying with Standard: IEC 60331-11, BS 6387(C-W-Z), EN 50200, procedure IEC 60331-21.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

FEATURES:

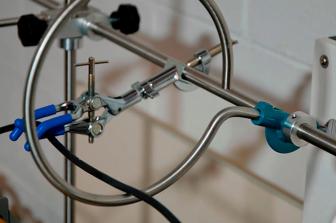

Sample supporting system:

n. 1 110 mm stainless steel rod having Ø 10 mm.
n. 5 150 mm Ø rings + n.2 Supports.
n. 2 double clamps + n. 2 supporting clamps.
500 mm long ribbon type propane gas burner with three lines of holes.
Complete with Venturi mixer, support, safety igniter.
Flame safety device with piezoelectric igniter.
Temperature measurement device: n. 2 K-type stainless steel sheathed thermocouples 1,5 mm with differential reader.

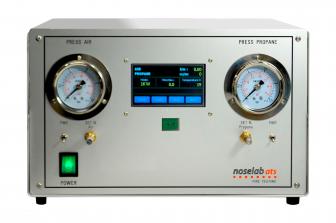

Control device for flow rate:
