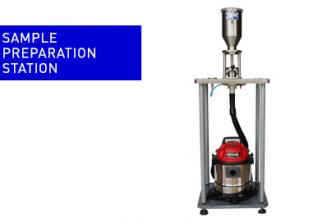

Main characteristics - Sample Preparation Station:

• Mainly made of stainless steel (AISI 316).
• Frame with work support table supported by 4 legs, allowing it to be placed directly on the ground.
• Geometry and dimensions (funnel, restrictor, wire screen, ...) according to SCAN-33 specifications.
• Includes 5 test tubes.
• Simple extraction of the specimen by action of a lever arranged for this purpose.
• Manometer located on the work table to read the suction pressure (14 Kpa - 0.14 bar according to standard).
• Adjusting the suction pressure by means of a regulation valve.
• Optionally, the equipment can be supplied with the vacuum element. Check with our commercial team about this possibility.
• CE Marked.

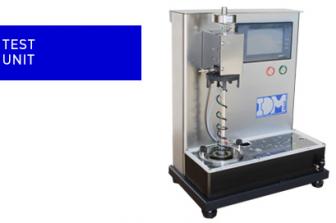

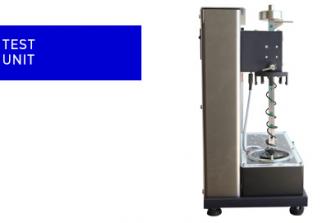

Main characteristics - Test unit:

• Desktop equipment made of stainless steel (AISI 316).
• Control and configuration touch screen.
• Simple and intuitive operating menu, configurable in different languages.
• Automatic timer and displacement meter.
• Electrodes for detecting the humidity of the test piece.
• Results table for a maximum of 10 measurements. Calculation of specific volume, absorption time and absorption capacity.
• Estadistic control. Average value, standard deviation and maximum and minimum values.
• Possibility of displaying results graphically (diagrams).
• USB output to printer with printing of values and averages.
• RS-232 output for connection to PC. Possibility of transferring test results and data packages to PC.
• CE Marked.

The test to determine the specific volume and absorption properties of fluff pulp according to SCAN C-33 standard:

Cylindrical Fluff specimens with a mass of 3 g and a diameter of 50 mm are prepared. The specimen is positioned in vertical position, on a plate with a perforated bottom, and apply a mass of 500 g. In this situation, the height of the specimen and the specific volume is calculated. Then it allows the specimen to absorb water from below. Time required for water to penetrate the upper surface of the specimen is measured and considered as absorption time. Absorption capacity is determined by weighing the soaked specimen.
