ELECTRIC PLASTIC FILM MICROMETER (MU-20PFL / MU-20PFR) - IDM

Cod: 010132 / 010134Standard: ISO 4593, DIN 53370, ASTM D6988.

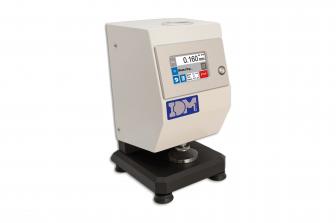

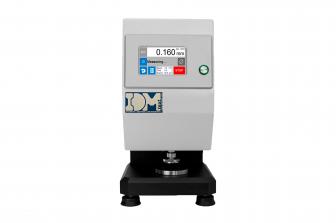

Electric micrometer for determining the thickness of plastic film sheets.

Contact Form

You can get in touch with us filling the contact form below.

The Plastic Film Micrometer is available in the following two variants, according to standard specifications:

- MU-20PFL (Cod. 010132) → Flat measuring probe. In this case, the equipment is supplied with a compensation weight.
- MU-20PFR (Cod. 010134) → Radius measuring probe. In this case, the equipment is supplied without a compensation weight.
Equipment resolution: 0.1 μm.
Measurement range: 10 mm.
Sample holder base plate: Ø 107 mm.

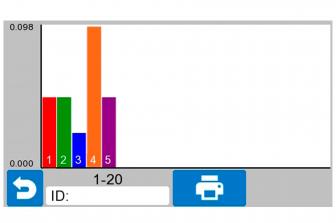

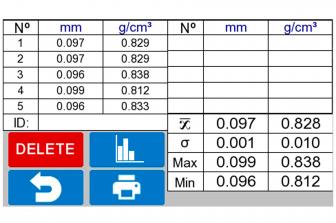

USB output to printer, with printing of values and averages.
RS-232 output for PC connection. Compatible with Capture software.
Timer for measurement cycles.
Electric raising and lowering of the measuring head.
Adjustable lowering speed of the measuring probe between 1 and 10 mm/s.
Programmable timer from 0 to 999.9 s.
Simple calibration (just press a button).
CE marked.
