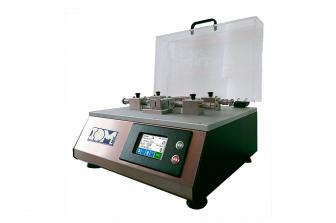

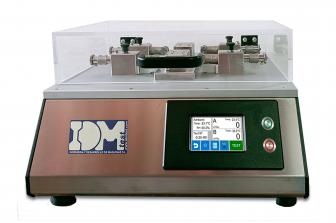

DOUBLE FOLD METHOD SCHOPPER EQUIPMENT (2 HEADS) (DP13505) - IDM

Cod: 110106Standard: ISO 5626, TAPPI 423, NF Q03-062, NF ISO 5626.

Equipment to determine the folding resistance of paper, according to the "Schopper" principle. Frequently used in the world of paper money and security. Manufacturer of cotton paste etc.

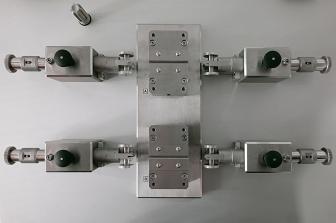

The device measures the number of folds until the sample breaks. Due to the double head system, it is possible to test two samples simultaneously.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

Share:

FEATURES:

Twin folding tester type.
Standard device for papers up to 0.25 mm thickness (also available for cardboard).
Standard instrument for security papers.
Spring force: min. 7.55 N / max. 9.81 N.
Testing length: 90 mm.
Sample length: 100 mm.
Sample width: 15 mm.
Schooper method speed: 115 ± 10 strokes/min.

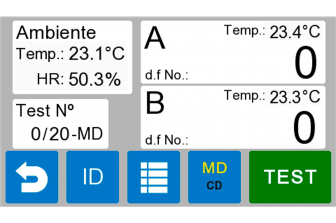

Laboratory (ambient) temperature and relative humidity displayed. Temperature of the heads displayed.

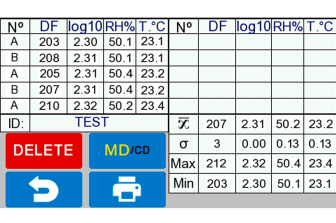

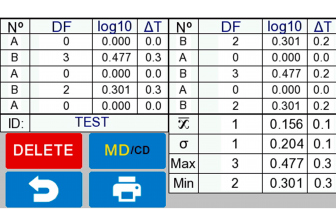

Colour touch screen with statistic functions.
Automatic stop after sample break.
RS-232 interface for result transfer.
Compatible with Capture Software.
CE marked.
