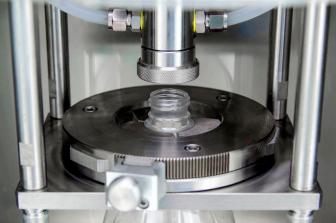

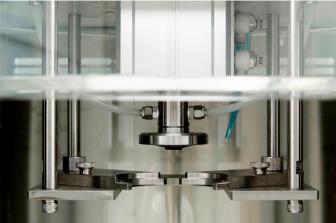

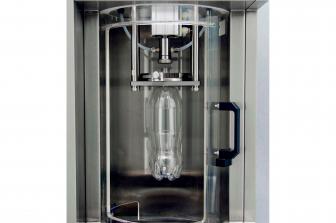

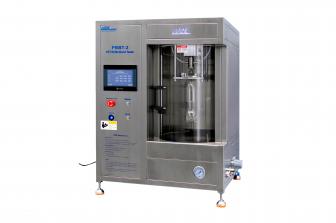

Device for testing the resistance to expansion and explosion of pet bottles (PBBT-2) - AT2E

Cod: 440801Standard: None.

For PET bottles - Simulation of the filling process.
PBBT-2 PET Bottle Burst Strength Tester is a specialized testing equipment for testing the internal pressure resistance of PET bottles.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE
    • Share:

    • Standard equipment for the PET bottle industry.
    • Three (3) international testing methods.
    • Integrated PLC & touch screen control.
    • Automatic sealing and filling system.
    • Display of pressure curves and volume expansion during testing.
    • User sets product batch number and sequence number.
    • Applicable to the 2.5 L bottle (contact us for a larger size).
    • Can register 10 operators and 30 products.
    • Monitors and records water temperature during testing.
    • Storage of up to 100 test results.
    • Stainless steel design guarantees the durability of the tester.
    • RS232C data output – Connection to a printer or QPV software.
    • Built-in calibration function.
    • Measuring range: 0 - 20 bar (30 poss).
    • Accuracy : ±0.5% of full scale (FS).
    • Resolution: 0.01 bar.
    • Pressure unit : bar, psi.
    • Sample range : max. diameter. 130 mm, max. height 360mm.
    • Sample volume : Up to 3 L bottle.
    • Expansion in volume : Up to 3 L (larger on order).
    • Compatible tightening system : Neck diameter 25 - 38 mm.
    • Power supply : AC 220V (AC 110V optional).
    • Pressure required : ≥1.5 bar water / air source 20 bar.
    • Temperature range : 0 to 50°C.
    • Temperature unit : °C, °F.
    • Rear panel : RS232 serial output.
    • Language : English / French / Spanish / Portuguese / Polish / Chinese.

    OPTIONS:

    • Recycling system.
    • Temperature control unit for water recycling system.
    • Additional booster.
    • Custom pliers.
    • Mini printer.
    • Calibration pack (including precision manometer for pressure calibration / graduated calibration bottle / spacer).
    • “QualiBurst” software.
