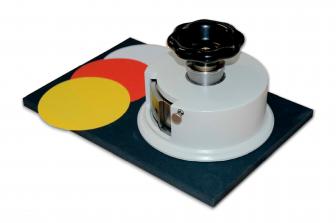

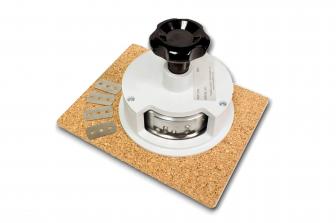

CIRCULAR SAMPLE CUTTER 50/100 cm² (PS 50/100)

Cod: 100201 / 100202Standard: ISO 536, BS 3432, DIN 53104, SCAN P6, TAPPI T-410, NF Q 03- 019, CPPA D.3, etc.

Circular manual sample cutter with knob to cut circular samples of 50 or 100 cm² of paper, paperboard and textiles for tests of basic weight, FCT, etc.

This equipment is not recommended for the FCT test for corrugated cardboard, since during the cut a pressure is applied on the sample that can falsify the test.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

FEATURES:

2 Models:
- Cod. 100202: 100cm² sample area.
- Cod. 100201: 50cm² sample area.

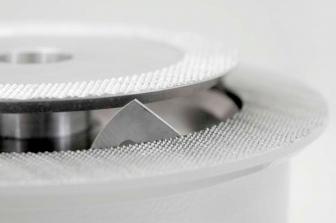

Manual sample cutter with four blades.
Cut circles in order to determine basic weights of paper, paperboard, textiles and other sheet materials.
Cutting by turning 90º.
12 mm thick base plate.
Practical and safe operation.
Standard size: 100 cm².
Other available sizes: 10 and 50 cm².
Unit for 10 mm thick samples (100 cm²) (Optional).
Cutting areas 10 and 50 cm² (Optional).

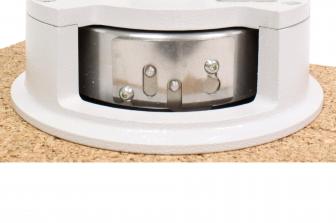

Blades can easily be replaced through the side opening on the instrument (only for the 100 cm² unit).
CE marked.
