CANADIAN STANDARD REFINING DEGREE METER (CSF / DCSF) - IDM

Cod: 070231 / 070236Standard: ISO 5267/2, SCAN C21, PAPTAC C.1, BS 6 035/2, TAPPI T227, SCAN M4.

Equipement for the determination of the refining degree and the drainage rate of paper fibers, according to the Canadian method.

Contact Form

You can get in touch with us filling the contact form below.

Robust equipment made of stainless steel.
Ease of operation and cleaning.
Metal mesh according to standard.
2 versions:
- Manual: Code: 070231 (CSF-IDM).
- Digital: Touch Screen + Level Sensor. Code: 070236 (DCSF-IDM).
Test cylinder and funnel made of POM with high dimensional stability, low water absorption and low weight.
Digital Version: Start Button with Pneumatic Air Inlet Valve.
Digital Version: With RS-232 interface for PC connection (Optional CAPTURE Software).

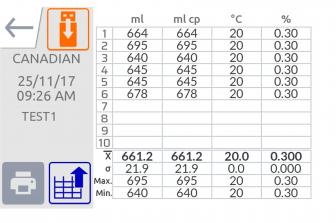

Digital Version: Color touch screen with numerical results, statistics and drainage graph.
Possibility of temperature compensation (Optional digital model).
CE marked.
