BURST TESTER (EM-50/80) - IDM

Cod: 020101 / 020102Standard: ISO 2758, ISO 2759, TAPPI T403, T807, T810, BS 3137, FEFCO 4, SCAN P25/P24, ASTM D477, etc.

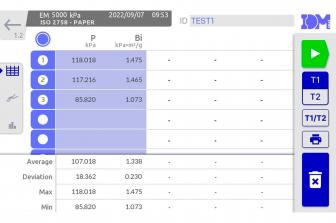

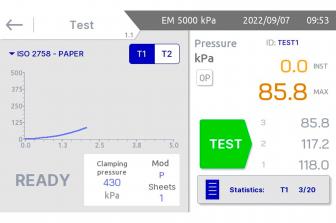

Laboratory equipment with pneumatic clamping to determine burst in board and paper. Large colour touch screen burst values representation, bursting curve, BEA values and full statistics. Easy handling and robust equipment, Easy change of the membrane. Possibility to test burst in wet papers. PC connection for machine monitoring trough test software and USB connection to printer and update jobs.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE
    • Share:
    • New design with improved ergonomics and new materials.
    • Possibility to perform tests on both paper and corrugated cardboard.
    • Easy paper/cardboard change system, by changing the testing membrane and jaws.
    • 7” color touchscreen with preprogrammed tests.
    • Calculation of maximum pressure and BEA (Burst Energy Absorption).
    • Illuminated testing area.
    • Automatic sample detection.
    • Highly rigid steel and aluminium frame.
    • Driven by servo motor and high-precision ball screw.
    • Emergency stop button.
    • Methacrylate safety protective screen with active protection (an incorrect position of the screen prevents the upper clamp from lowering to avoid accidents).
    • 200cc glycerin reserve tank for greater convenience when purging air from the hydraulic circuit during membrane changes.
    • Maximum thickness of the sample to be tested: 12 mm.
    • Possibility of conducting wet testing.
    • Supports with regulation for leveling the equipment.
    • Measuring range:
      • EM-50, Cod. 020101: 0 a 5.000 kPa.
      • EM-80, Cod. 020102: 0 a 8.000 kPa.
      • Other possible ranges on request.
    • Accuracy: < 1% of the reading for a range between 2% and 100% of the F.S.
    • Readings with a resolution of 0.004% of full scale.
    • Configurable pumping flow rate:
      • Corrugated Cardboard: 170 ± 5 ml/min.
      • Paper: 95 ± 5 ml/min.
    • Maximum sample clamping force of 7.000 N, adjustable via pneumatic regulator.
    • USB connection for data export.
    • RS-232 interface for connection to Test Control and Management programs.
    • Ethernet connection for maintenance and updates.
    • USB printer connection.
    • CE marked.
