AUTOMATIC ·GURLEY· POROSIMETER (PG-A01) - IDM

Cod: 170406Standard: ISO 5636/5, TAPPI T460, SCAN P-19 & P-53, ASTM D-726-58, BS 5926.

Equipment used to determine the paper porosity according to Gurley method.

The test consists of the time it takes a certain volume of air to pass through a paper. The side of the paper by which we measure is indistinct. The process of clamping the sample, releasing the cylinder and putting it into its original position is completely automatic controlled by a PLC. The clamping of the sample is pneumatic and the time is given to us in digital format in its control module with touch screen. It is possible, in case the client has a manual equipment, to digitize and automate old equipment regardless model and brand.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

FEATURES:

Original Automated Gurley Porosity Equipment.
Easy operation and high measurement accuracy.
Four test volumes, 25, 50, 100 and 300 cc.
Time range from 0 to 1000 seconds.
Completely automated without the need for an operator during the test.
- Pneumatic clamping of the sample.
- Release of the test cylinder.
- Automatic stopwatch for test time (seconds).
- Opening of the sample clamping jaws upon completion of the test.
- Return of the measuring cylinder to its initial position.
Graduated cylinder of 20 oz. with a measurement diameter of 1 inch².
Automatic pneumatic cylinder lifting module.

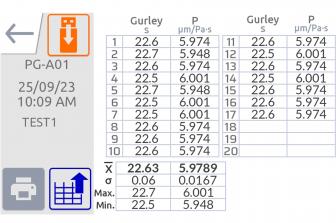

4” full-color touchscreen providing complete control over all the equipment’s functions.
Full statistics: maximum and minimum values, mean value and standard deviation.
RS-232 port for connection to Control and Test Management software CAPTURE (optional software).
USB output for printer connection.
CE marked.
