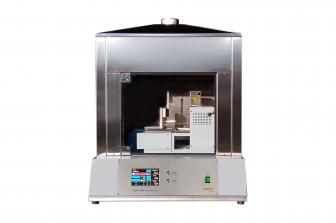

EB05 (AUTOMATIC GLOW WIRE WITH CABINET) (Code: 430515):

• Steel test chamber volume approx 0.5 cum with inner part painted in black to guarantee the required lux level.
• Safety glass.
• Upper part designed for connection to a fume exhaust system.
• Internal lighting.
• Automatic, motor-operated carriage sliding system.
• Stainless steel sample holder mm 70x15x120.
• 4 mm dia. NiCr Wire.
• Type K thermocouple (Ø mm1,0).
• Control board including: Touch screen Control Board which shows wire temperature, time of test and voltage Programmable test sequence time.
• Start and stop push-buttons, warning lights.
• Collecting tray.
• Wood tablet and cotton paper.

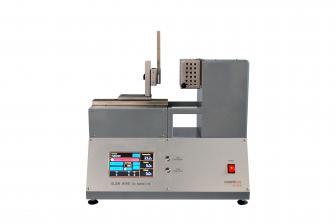

EB03 (GLOW-WIRE) (Code: 430509):

• Motor driven Carriage sliding system for the test-sample advancement.
• Stainless steel sample holder mm 70x15x120.
• Device with weights to apply the required contact pressure between the test specimen and the heating element.
• Type K thermocouple (Ø mm1,0).
• 4 mm dia. NiCr Wire.
• Touch screen Control board showing both wire temperature, time of test and Voltage Programmable test sequence time.
• Starting button for the motor-driven carriage.
• Collecting tray.
• Safety guard of the incandescent thread.
• Wood tablet and cotton paper.
  -Apply the apparatus under a fume extraction hood or inside a laboratory hood equipped for handling.
  -The verification of the glow wire temperature measuring system uses a one-point measurement based on the melting temperature of silver foil.
