40 L LABORATORY PULPER (LOW and HIGH CONSISTENCY) (HELICO-15/40) - IDM

Cod: 071009Standard: None.

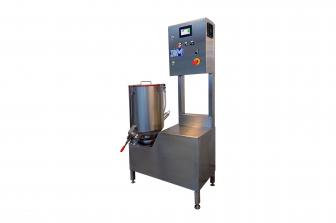

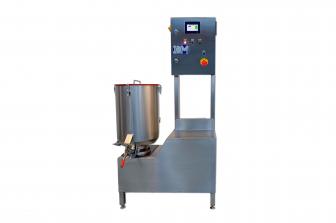

Pulper Helico for defibration of virgin or secondary (recycled) pulp, at laboratory scale at low and high consistency.

Essential for evaluating fibers in terms of their pulping ease and predicting results on an industrial scale, it will also allow us to assess processes, additives, and the final fiber quality after pulping.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

FEATURES:

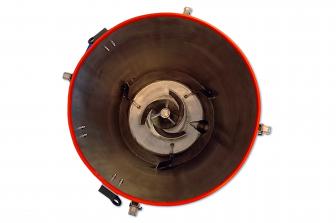

Cylindrical tank with a total volume of 40 liters.
Manufactured in AISI-316L Stainless Steel.
Working volume at low consistency up to 35 liters.
Working volume at high consistency 15 liters.
Consistencies of 2-7% in low and up to 15% in high.
4” color touchscreen for displaying Time/Countdown timer, working Speed, and Temperature.

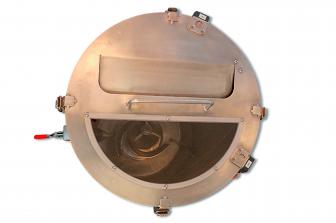

Cover with locking system and inspection window.

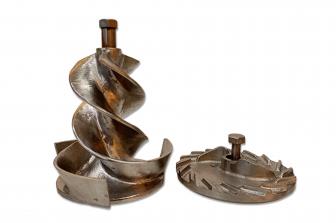

Removable Helico turbine (High consistency).

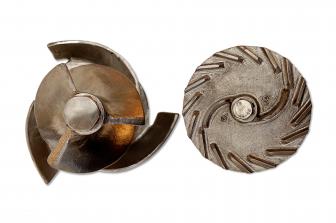

Removable Classic turbine (Low consistency).
Temperature measurement with a “PT-100” Temperature Probe.
Control of total and instantaneous energy consumption.
Working speed: up to 1000 rpm.
Speed adjustment via potentiometer, with display on Touchscreen.
2” manual tank drain valve.
¼” G ball valve, for dilution under turbine.
Mounting key for turbine fixing screw.
Electric motor, 4 kW / 1500 rpm, B-3, IP-55.
Electrical Connections: 380/480 III V, 50/60 Hz, 25 A.
CE marked.
