INTERNAL PENDULUM BOND TESTER IBT-10A TS IDM

Cod: 080102Standard: TAPPI T833 y T569.

Digital equipment to determine the adhesion of internal layers on paper and paperboard. Fully automatic pendulum, with the entire automatic testing process without operator influence, pneumatic clamping of the sample holder, pendulum release and return after performing the test. Interchangeable pendulums, with 3 scales of measurement for different types of papers according to their resistance. Complete statistical calculations. Touch screen, RS-232 and USB output for connection to PC and printer.

Contact Form

You can get in touch with us filling the contact form below.

REQUEST ESTIMATE

FEATURES:

Microprocessor controlled.

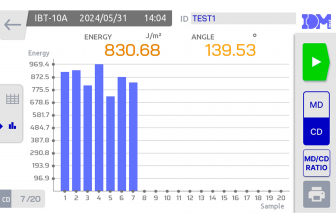

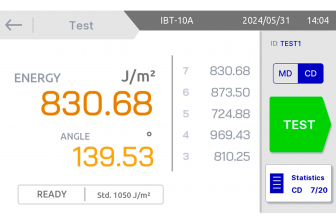

Control panel with 4´´ full colour touch screen and an auxiliary button.
Selection of work units: ft.lb/sq.in, mJ/sq.in and J/m2

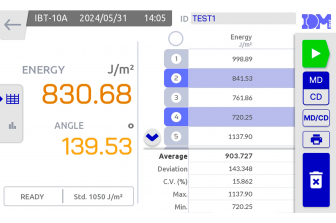

Full statistics functions over 40 values.
Three measure ranges with exchangeable pendulums.
Steel robust frame designed to avoid energy losses during test.
Bubble level for equipment levelling.
Automatic equipment calibration (automatic zero).
Pneumatic pendulum release to avoid differences between operators.
Fixing of the sample holder and automatic returning of the pendulum to initial position.
RS-232 and USB connections.
